Flow Metering from Raw Water, Process Chemical to Effluent Applications

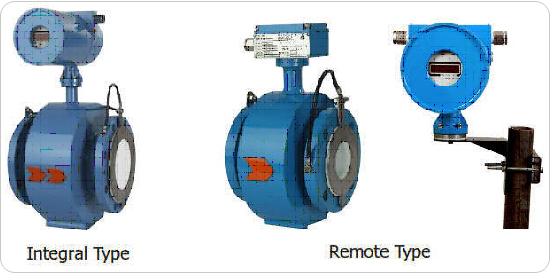

Electromagnetic Flow Meter
Raw water although is abundant is a costly fluid as it’s consumption increases not only the natural resources consumption but also needs reserve for future need. The optimization of this natural resource usage can be judiciously achieved only by means of metering.The savings are not only in terms of dispensing only assured quantity but also interns of energy savings as the transfer pumps used for this application are usually with higher energy rating for the reason of heavy flow at low pressure creating higher torque on the rotor.
Applications:
Raw Water Application
Processed Water Application
Effluent or Sewerage Water Application
Process Conductive Chemicals Application
Flow Measurement for Vending Applications
Pure Water Application
Process Solvents Application

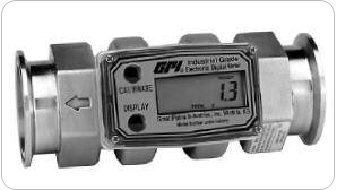

Turbine type Flow Meter
The demand of processed water is increasing keeping in view the increasing contamination in the potable water. Thus this water is although once is a natural resource but today has become an essential commodity and is being issued on vending basis. The unwanted consumption cum wastage will in-turn will result in revenue loss directly and indirectly by means of energy bills, cost of production and increased cost of consumables.
For pharmaceutical, clinical and certain hygienic manufacturing practices just processed water is not enough but as well marinating and storing it a hygienic conditions needs extra precautions following stringent norms. This kind of water is termed as pure water, which is not only fluid and is more or less utilized judiciously as in the case of mineral oils dispensing. A close monitoring of this water is required to see that the consumption from user points is not exceeding the plant generation capacity.
The environmental concept zero discharge is being accepted by many organizations and even in infrastructure terming it a green building. It is to see that the discharged effluent from the sewage line is clarified from solid waste, solids in suspension after primary and secondary levels of treatment and is being utilized after proper treatment for selected utility applications like plantation. On the other hand the discharged effluent can carry though a separate pipe line which is a composite of manufacture waste chemicals, spillages and sanitation primarily. This effluent carries irregular pH, and other impurities which will be having a adverse effect on environment if left untreated. The flow of this too is a constrain for any process / chemical industry as per the prevailing norms.
Advantages of Electromagnetic Flow Meter:
No additional cost of instrument protection
Havings no moving parts
Local LCD Digital display Option: isolated retransmission
Accuracy: of 1% and better
Extended body life with application related inner lining
Suspended solids passing through the line with no clogging the flow passage
Instant flow rate and totalized value
Can be calibrated on site at in-situ condition
No need to shut off of the line
