The process measuring parmeter recorded reading is loaded on to the memory of the datalogger and can be retrieved by means of PC communication port for console / HMI view.
The conventional chart recorders doesnot allow the exact reading as its cluster to make exact plots, a image of the same kind can viewed as below:

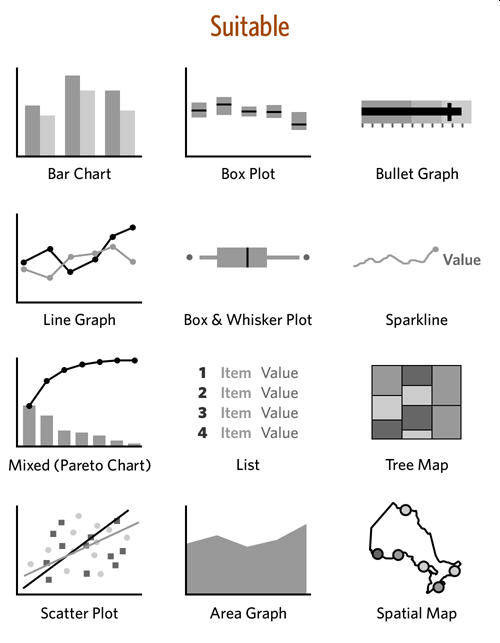

These problems can be avoided with a good datalogging software with features tailor made to the industry specific application. A few of the sample images are as below:
Graphical plotting for redundancy points catch-up.

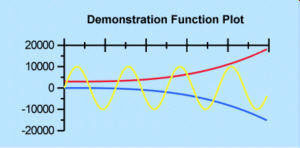

Plotting Graphic view / profiles to check for response time, amplitude, linearity, etc.
Ready made software to tailor made software can be implemented to the operating parameter anlaysis as an MIS tool by means od data acquisition modules.

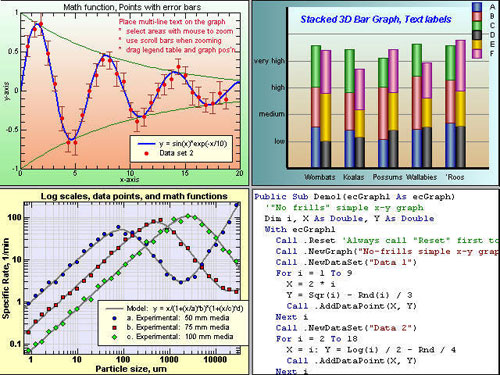

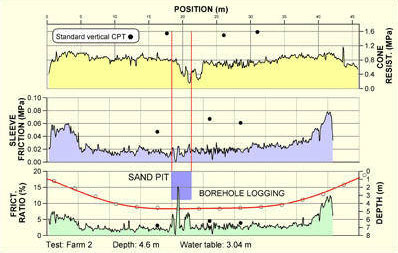

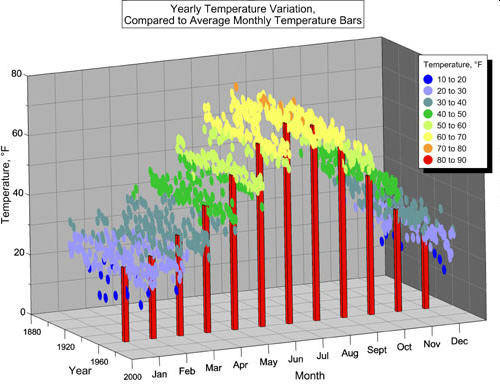

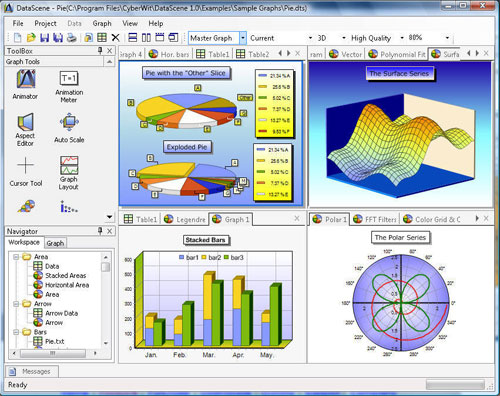

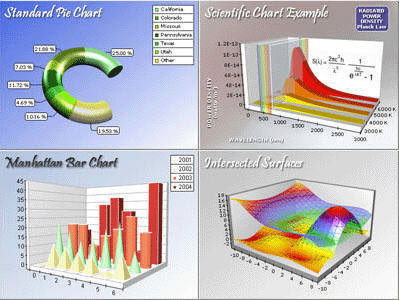

Some of the typical application screen shots are listed below
