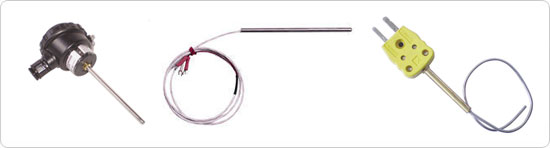

Home Company Profile Services Enquiry Contact     Parametre Solution & Products Flow Monitors Level Monitors Calibration Equipments Data Acquisition Systems Temperature Monitors Pressure Monitors Protective Devices Machine Monitoring Controllers & Indicators Control Valves     Temperature Monitors >> Sensors Temperature Sensor Type RTD (Pt100), 3 wire Configuration: Simple Insulation: Mineral Insulated Extension wire: Silver Sheath Material: SS – 316 Sheath Dia: As per order Length: As per order Calibration as per DIN 43761 Element conn.: ½” BSP (M) adj. Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.         Temperature Sensor Type J, Simplex Configuration: Simple Insulation: Mineral Insulated Element: Fe-Co Sheath Material: SS – 316 Sheath Dia: As per order Length: As per order Calibration as per DIN 43761 Element conn.: ½” BSP (M) adj. Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.             Temperature Sensor Type K, Simplex Configuration: Simple Insulation: Mineral Insulated Element: Cr-Al Sheath Material: SS – 316 Sheath Dia: As per order Length: As per order Calibration as per DIN 43761 Element conn.: ½” BSP (M) adj. Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block         Temperature Sensor Type R, Simplex Configuration: Simple Insulation: Mineral Insulated Element: PT-PT-RH 13% Sheath Material: Ceramic double tube Sheath Dia: 15 mm ~ 20 mm Length: up to 300 mm Calibration as per DIN 43761 Element conn.: ½” BSP (M) adj. Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.         Temperature Sensor Type S, Simplex Configuration: Simple Insulation: Mineral Insulated Element: PT-PT-RH 10% Sheath Material: Ceramic double tube Sheath Dia: 6 mm ~ 10 mm Length: up to 300 mm Calibration as per DIN 43761 Element conn.: ½” BSP (M) adj. Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.         Compensating Cables                     Transmitters( Head Mounted & DIN Rail Mounted)           1. Head Mounted                     2. Din Rail Mounted                      Pressure Monitors, Temperature Monitors, Flow Monitors, LevelMonitors, Calibration Equipments, Data Acquisition Systems, Machine Monitoring, Controllers & Indicators, Control Valves, Protective Devices
